cat6 cable utp/ftp/stp/sftp network lan cable cat6 cable manufacturer from China owire cable factory

cat6 cable utp/ftp/stp/sftp network lan cable

Price:	20.0~200.0 USD
Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: cat6 cable

Production Capacity: 1000000

Delivery Date: 10 days after deposit confi...

Type: Cat 6

Number of Conductors: 8

Certificate: FLUKE/CE/ROHS/ISO/TLC

Jacket: PVC/RoHS/LSNH

Package: 305m/roll

origin: Shenzhen,China

Means of Transport: Ocean

Packing: 1000ft(305m)/carton 950 ca...

Application: Computer

Brand Name: Apkte,Owire

Operating Temperature: 60~75

Conductor: CU/CCA/CCS/CCC/4CCA+4CCS

Shield: UTP/STP/FTP/SFTP

Voltage: Low Voltage

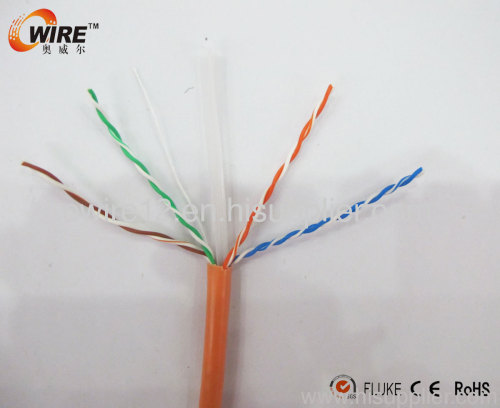

cat6 cable utp/ftp/stp/sftp network lan cable
1.FLUKE/ROHS/UL
2.130-150m working connect distance
3.Conductor:CCA/CU/4CCS+4CCA
4.OEM service

cat6 cable utp/ftp/stp/sftp network lan cable

CAT6 UTP

Specification:

1.Specification: 4P+F

2.Rated Temperature: 60℃ or 75℃

3.Unshielded twisted pairs:

4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper

5.Insulation: HD-PE

6.Filler: PE Cross or FM-PE Thin slice

7.Unrip rope: optional

8.Jacket: PVC or LSNH

9.Impedance:100±15%Ω at 1~250MHz

10.Reference standard: YD/T1019-2001\ISO/IEC11801\ANSI/TIA/EIA-568B\UL 444

11.Print Legend: CM or CMR

Features

1.Seperator Inside the Cable Realizes the More Stable Transmission

2. Solid Copper Conductor Allows High Performance

3.Fast and Reliable Connection

4.Twisted Pairs with Bright Color for Easy Recognition

5.Ripcord and Footmark for Convenient Use

6.Smooth Jacket for Easy Pulling in Tight Space

7.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

Applications:

1.Computer Network Cabling Project.

2.Broadband Network Communication.

3.Digital ISDN Network and ATM 155Mbps Network

4.Ethernet Network

5.Audio and Data Transmission

Packing: 305m/carton

Jacket

Pairs

Conductor

Insulation

Unrip rope

Filler(Cross)

Jacket

Pairs

Conductor

Insulation

Unrip rope

Filler(Thin slice)

Cable Assembly Specification:

Conductor		Insulation		Core Number	Filler	Jacket
AWG	Specification (mm)	Material	Thickness (NOM.mm)	Core Number	Filler	Material	Thickness (NOM.mm)	OD (NOM.mm)
26	1/0.404	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	5.5
26	7/0.16	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	5.5
24	1/0.58	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	6.5
	1/0.58	HD-PE	0.18	4P	FM-PE Thin slice	PVC or LSNH	0.55	6.0
	7/0.203	HD-PE	0.18	4P	PE Cross	PVC or LSNH	0.55	6.2
	7/0.203	HD-PE	0.18	4P	FM-PE Thin slice	PVC or LSNH	0.55	5.8

USE: Mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring.
