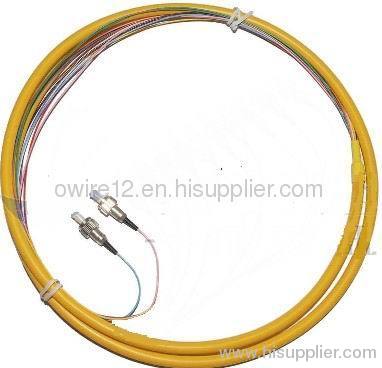

DIN/PC Simplex 3.0mm G652 9/125 Fiber Optic Patch Cords G652 9/125 manufacturer from China owire cable factory

DIN/PC Simplex 3.0mm G652 9/125 Fiber Optic Patch Cords

Price:	0.1~100.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: G652 9/125

Production Capacity: 50000pcs/week

Delivery Date: 7~15days

Type:: G652,G657

jacket:: LSZH

delivery: 7~15days

Means of Transport: Ocean,Land,Air

Packing: Standard export drum for fi...

Brand Name: Owire

Core:: Up to 288 fibers

certificate: CE,ROSH,FCC...

DIN/PC Simplex 3.0mm G652 9/125 Fiber Optic Patch Cords
1. Owire Fiber
2. Single mode
3. 10 days production time
4. Factory pirce with high

DIN/PC Simplex 3.0mm G652 9/125 Fiber Optic Patch Cords

Specifications

1.DIN/PC Simplex 3.0mm G652 9/125 Fiber Optical Patch Cords
2.Low insertion loss & High return loss
3.High reliabilty

Feature

1. Provide high density mounting in any optical equipment

2. Excellent optical performance

3. Available for both SM MM simplex and duplex

4. 0.9mm 1.8mm cable diameter option

5. Link can provide UL-fire or smoke and cable
Application

1.CATV

2.Test equipment

3.Local Area Networks(LANS)

4. Telecommunication Networks

5. Wide Area Networks

6. Metro

7.Active device termination

8.Data processing networks

Specification

Parameter
Unit
PC(SM)
UPC(SM)
APC(SM)
PC(MM)
Return Loss
dB
≥45
≥50
≥60
≥35
Insertion Loss
dB
≤0.2(MAX≤0.3)
Repeatability
dB
≤0.1
Durability
Time
≥500
Operating Temperature
°C
-25~70
Tensile strength
N
≥70(Φ 1.8 mm), Φ 0.9mm NO application
